Intelligent Welding System

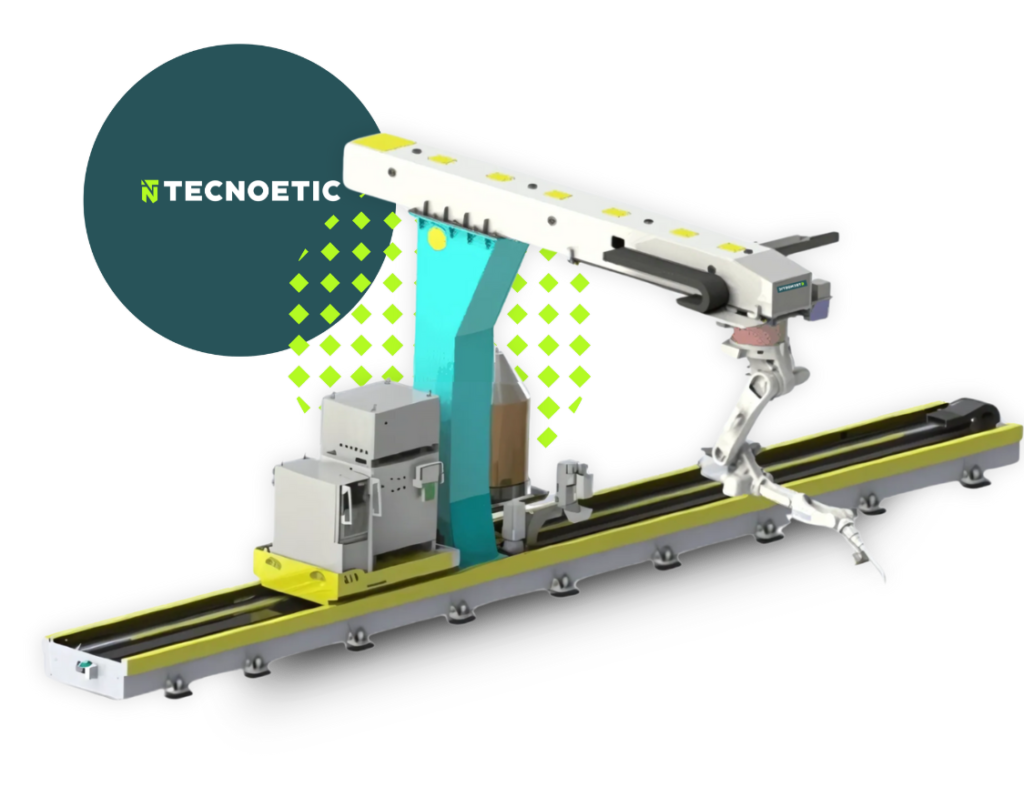

13m Inverted C-Frame 8-Axis Welding

The 13-meter intelligent welding workstation features an 8-axis sideways gantry, Femocam/Femostar 3D sensors, and Fesinweld system, ensuring high-precision MIG/MAG welding on carbon and structural steel with powerful performance.

INQUIRY NOW!

Download..

Tecnoetic

Important Features Overview

Supports array and non-array battery packs, real-time welding monitoring, breakpoint restart, dual-position welding, and customizable welding parameters for enhanced precision, efficiency, and seamless operation in battery pack manufacturing.

MIG/MAG Welding Capability

Supports MIG/MAG welding with 80%Ar+20%CO2 and 100%CO2 gases.

Adaptable Plate Thickness

Supports plates ≥3mm, with options for multi-layer and multi-pass welding flexibility.

Welding Accuracy

Achieves ±0.5mm welding accuracy, ensuring consistently precise results and high-quality welds in every operation.

Assembly Error Tolerance

Accommodates assembly errors up to ≤50mm, providing flexibility for diverse production needs.

Single Industrial Robot

CLOOS QRH-405 ensures automated precision, enhancing welding efficiency and providing consistent, high-quality results.

High Power Supply

Operates on AC380V/220V 50Hz ≥45KVA, providing reliable power for demanding, heavy-duty welding applications efficiently.

Technical Specifications:

TABLE HEADER 2
Power Supply	5PH AC380V/220V 50Hz ≥45KVA
Workstation Motion Axis QTY	8 axis
Welding Material Type	Carbon Steel, Structural Steel
Welding Procedure	MIG/MAG
Welding Gases	80%Ar+20%CO2 100%CO2
Adaptable Plate Thickness	≥3mm (Optional Multi-Layer & Multi-Pass)
Operating Range	≤12m×3.5m×0.5m
Industrial Robots QTY	1
Welding Accuracy	±0.5mm
Maximum Peak Welding Current	500A
Peak Total Power	45.6 KW

TABLE HEADER 2
Power Supply	220V 50Hz ≥45KVA
Workstation Motion Axis QTY	8 Axis
Welding Material Type	Carbon Steel, Structural Steel
Welding Procedure	MIG/MAG
Welding Gases	80%Ar+20%CO2 100%CO2
Adaptable Plate Thickness	≥3mm (optional Multi-layer & Multi-Pass)
Operating Range	≤12m×3.5m×0.5m
Industrial Robots QTY	1
Welding Accuracy	±0.5mm
Maximum Peak Welding Current	500A
Peak Total Power	45.6 KW

The 13-meter intelligent welding workstation combines advanced 8-axis motion with Femocam/Femostar 3D sensors and Fesinweld technology. Designed for precise MIG/MAG welding, it offers exceptional performance on carbon and structural steel, ensuring high-quality results with every weld.

Equipped with a powerful 500A welding current and an integrated CLOOS QRH-405 robot, this workstation can handle large workpieces efficiently. Built for durability, it guarantees long-term reliability, making it ideal for heavy-duty industrial welding applications.
